Chapter 8: Tools & Accessories
Complete accessories list, installation tools, and consumables for LPR/ANPR deployment
8.1 Accessories Overview
Successful LPR/ANPR deployment requires a comprehensive set of accessories, tools, and consumables beyond the core system components. Inadequate tooling and missing accessories are among the most common causes of installation delays and quality defects. The following accessories list diagram provides a visual inventory of all required items organized by category.

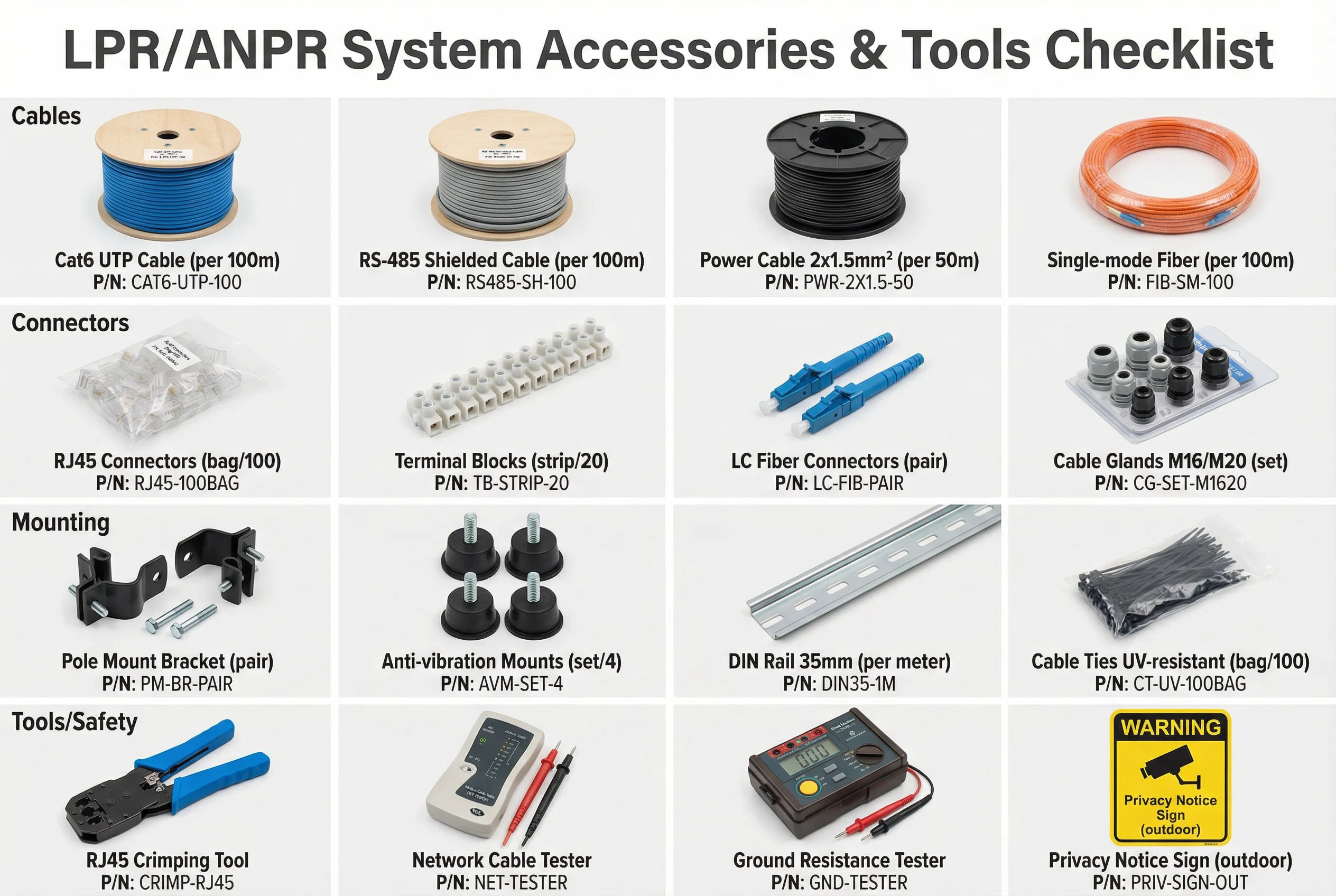

Figure 8.1: LPR/ANPR accessories and tools inventory — complete visual reference for deployment preparation
8.2 Complete Accessories and Tools List
The following table provides a complete itemized list of all accessories, tools, and consumables required for a standard single-lane LPR deployment. Quantities are per-lane unless otherwise specified. Adjust quantities based on the number of lanes and site-specific requirements.
| Category | Item | Specification | Qty/Lane | Purpose |
|---|---|---|---|---|
| Mounting Hardware | Camera mounting bracket | Stainless steel, adjustable pan/tilt, IP67 | 1 | Camera mounting on pole or wall |
| Pole mounting clamp | 60–114mm diameter, galvanized steel | 2 | Attach bracket to mounting pole | |
| Junction box | IP66, 200×150×80mm, cable glands ×4 | 1 | Cable termination and protection | |
| Mounting pole | Hot-dip galvanized, 3–5m height, 76mm OD | 1 | Camera and illuminator support structure | |
| Cabling | STP Cat6 cable | Shielded, outdoor-rated, 305m reel | 1 reel | Camera and device network connection |
| RJ45 connectors (shielded) | Cat6 STP, field-termination type | 20 | Cable termination | |
| RS-485 cable | 2-core twisted pair, 0.5mm², outdoor-rated | 50m | Barrier gate and trigger device communication | |
| Cable conduit | 20mm corrugated, UV-resistant, 50m | 1 reel | Cable protection in exposed runs | |
| Power Accessories | Surge protector (Ethernet) | 1Gbps, DIN rail mount, IEC 61643-21 | 2 | Protect camera and switch from lightning |
| Surge protector (AC power) | 220VAC, 20A, IEC 61643-11 Class II | 1 | Protect cabinet AC input | |
| UPS battery module | 12V 7Ah sealed lead-acid, replacement | 1 | UPS backup power (replacement) | |
| Installation Tools | Network cable tester | Wiremap + PoE detection, LCD display | 1 (shared) | Verify cable continuity and PoE |
| Optical power meter | 850/1300/1550nm, -70 to +10dBm | 1 (shared) | Verify fiber connections (if applicable) | |
| Laser distance meter | ±1mm accuracy, 0.05–50m range | 1 (shared) | Measure capture distance and mounting height | |
| Consumables | Cable ties (UV-resistant) | 200mm, black, UV-stabilized nylon | 100 | Cable management |
| Waterproof tape | Self-amalgamating, 25mm×3m | 5 | Weatherproof outdoor connectors | |
| Silicone sealant | Neutral cure, clear, UV-resistant | 2 tubes | Seal cable entry points in junction boxes | |
| Documentation | Lane configuration template | A3 laminated, site-specific | 1 | On-site reference during installation |
| Cable labeling kit | Brady M210 compatible, outdoor-rated labels | 1 kit | Permanent cable identification |
8.3 Spare Parts Inventory
A minimum spare parts inventory must be maintained on-site or at the nearest service depot to meet the defined repair time objectives. The following table defines the recommended spare parts inventory for a system with 1–10 lanes. Scale quantities proportionally for larger deployments.
| Spare Part | Recommended Qty (1–10 lanes) | Replacement Trigger | Lead Time |
|---|---|---|---|
| LPR Camera (complete unit) | 1 | Camera failure or damage | Same day (from depot) |
| IR Illuminator | 1 | Illuminator failure or aging | Same day (from depot) |
| PoE Switch (managed) | 1 | Switch failure | Same day (from depot) |
| UPS Battery Module | 2 | Battery capacity <80% of rated | On-site stock |
| STP Cat6 Cable (50m) | 1 reel | Cable damage requiring replacement | On-site stock |
| Surge Protector (Ethernet) | 4 | After lightning strike or surge event | On-site stock |
| RJ45 Connectors (shielded) | 20 | Connector failure or re-termination | On-site stock |
